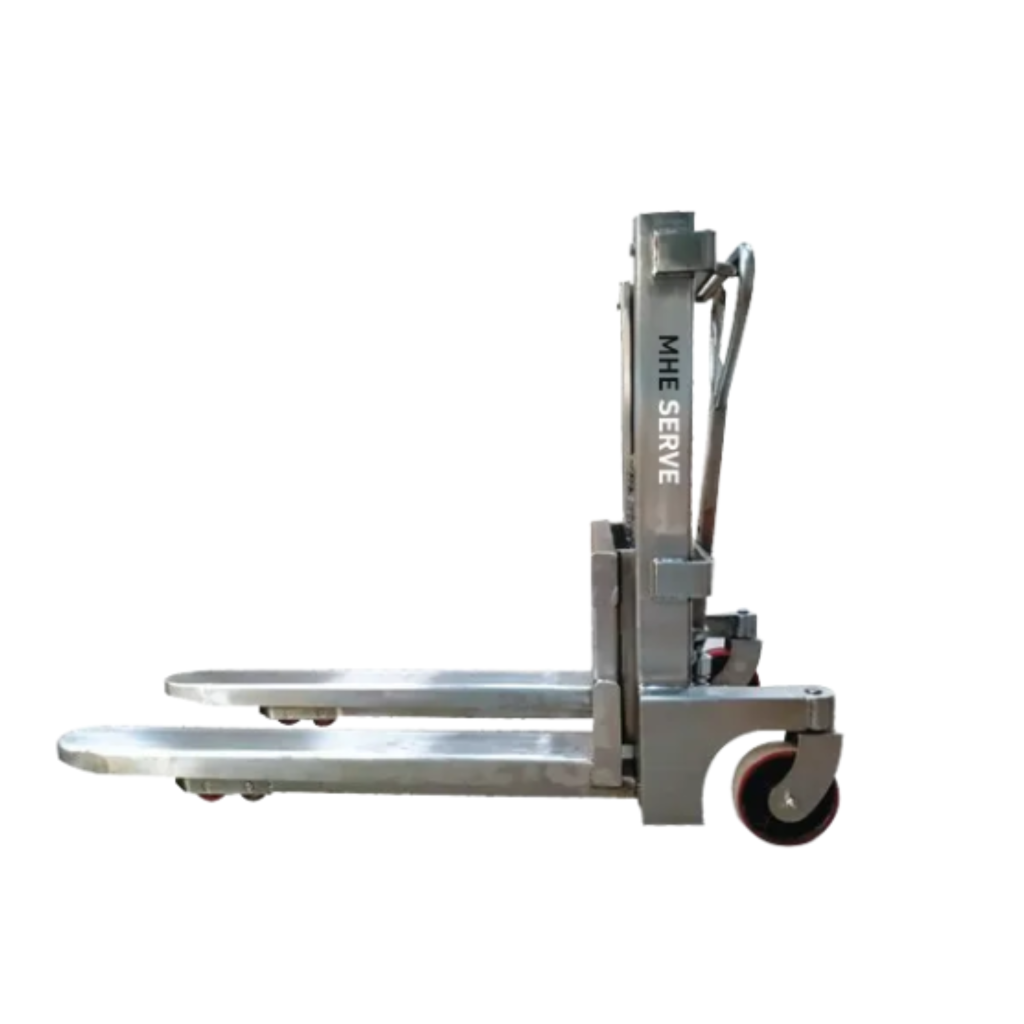

Manual Stackers
Model : HS 10/12/15
Load Capacity : 1000/1200/1500 Kgs
Fork : 1150 x560 / 685 mm
Lowered Height : 90 mm
Raised Height : 1600 mm
wheels : Nylon/PU
Suitable for In-plant Operations where lifting is primary and transport distance is short

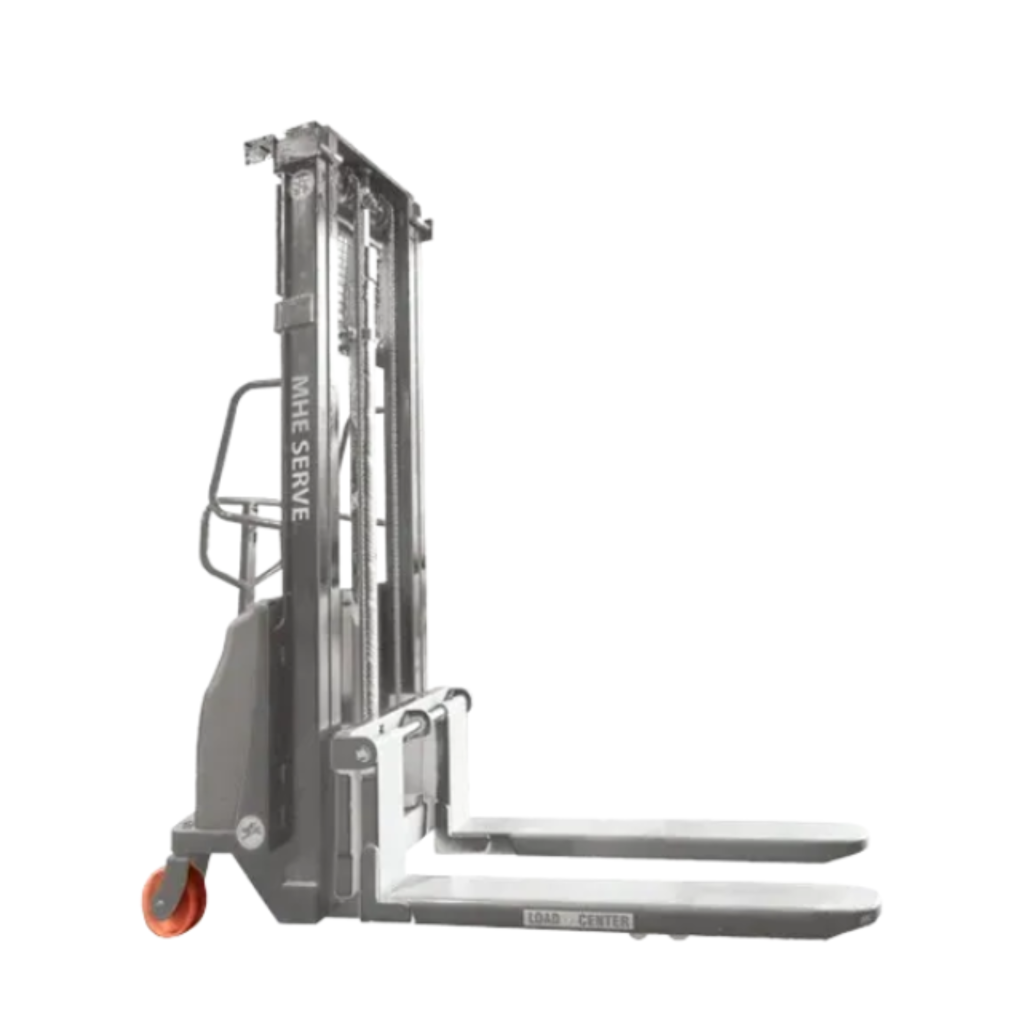

Semi Electric Stackers
Model : SES 10/12/15
Load Capacity : 1000/1200/1500 Kgs
Fork : 1150×560 / 685 mm
Lowered Height : 90 mm
Lift Height : Upto 3100 mm
Wheels : Nylon/PU
Powered with electric Lift, essentially used where applications require intensive stacking.

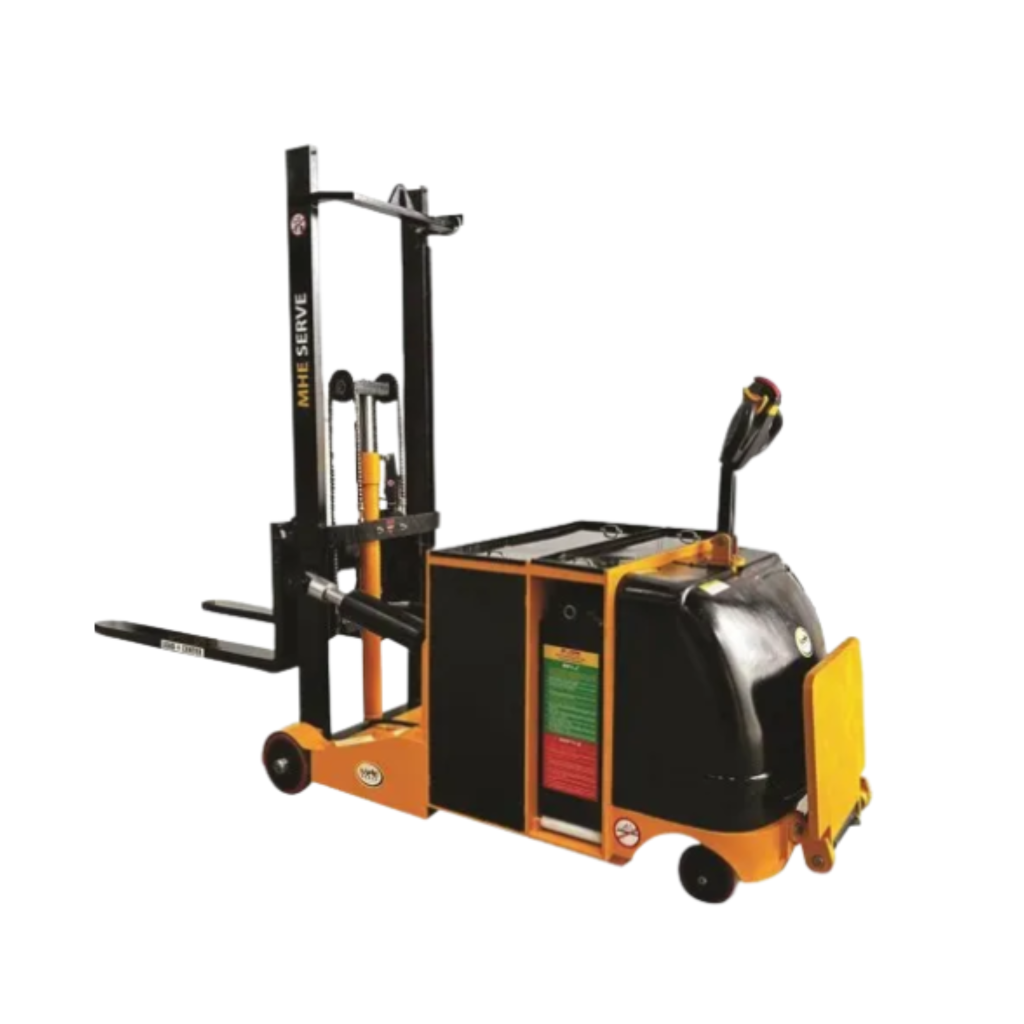

COUNTER BALANCED ELECTRIC STACKER
COUNTER BALANCED ELECTRIC STACKER
A perfect Fork lift & Stacker combination. Ideal for ONE VEHICLE DOES IT ALL Operations.
Stability
Featuring side-support wheels for enhanced stability
Safety Features
Enjoy extra safety during operations with a load backrest option
Heavy Duty Battery
Higher battery life, suitable for long working hours
Battery Rollout Option

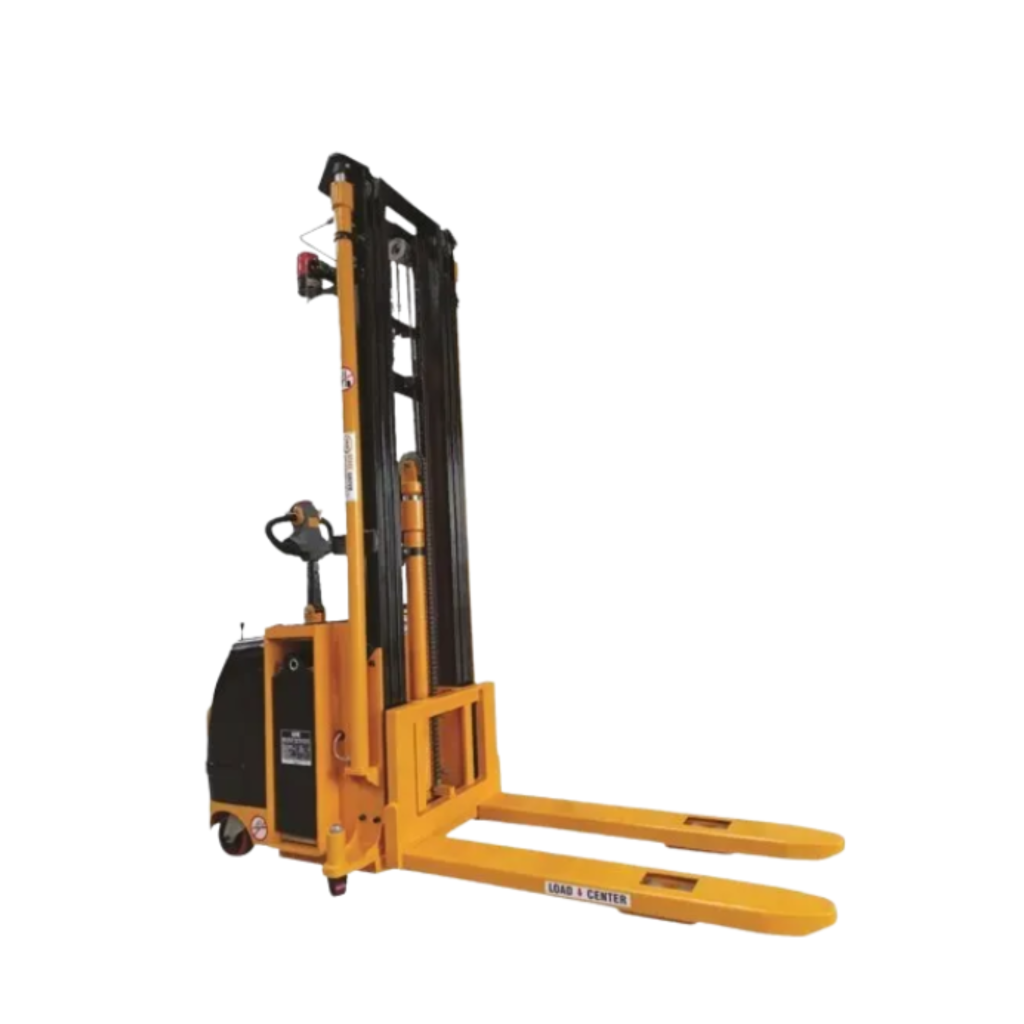

FULLY ELECTRIC STACKERS
Versatile, useful in almost all industrial work environments. Its Compact Design and small Turning radius makes it Ideal for operation in narrow aisles and busy gangways. Essentially an in plant Equipment, it is used fro intensive stacking and transportation in minimum cycle times.
1.Versatile stacker, useful in almost all industrial work environment
2.Ergonomically designed for enhanced productivity and safety
3.Ideal for operation in narrow aisles and busy gangways due to compact design and small turning radius
4.Ability to undergo highly intensive stacking and transportation in minimum time
5.Battery Discharge Indicator with pump lockout and hour meter

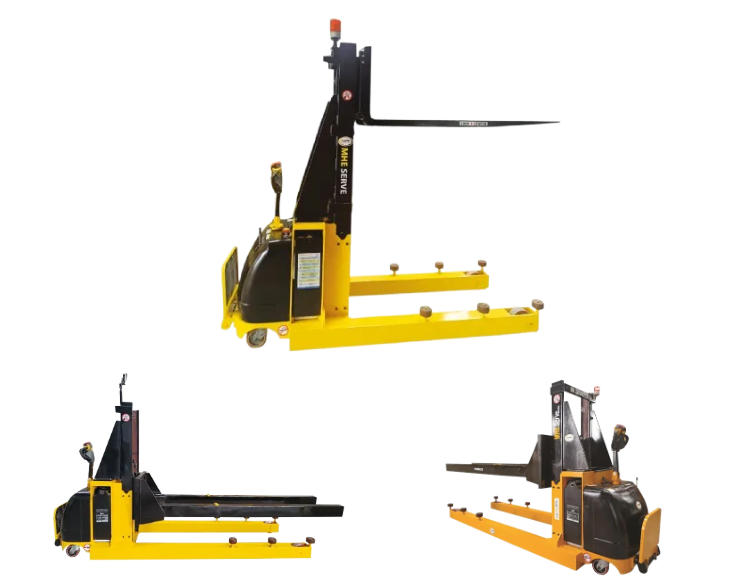

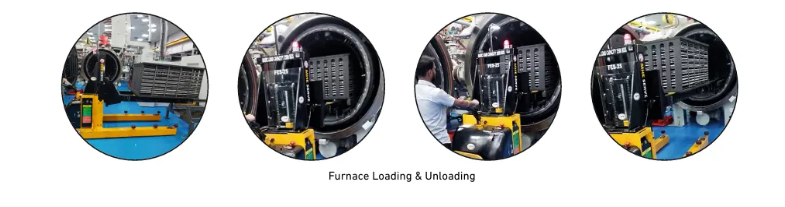

FURNACE LOADERS
The electric walkie furnace loaders are the most durable in the industry. Built tough to handle the most demanding environments, the MHE SERVE furnace loaders can be customized to accommodate a variety of load sizes. We recognize that safety is a priority when handling furnace loads, so we have developed numerous safety features to protect the operator, equipment and load. Such options include mechanical and/or electronic lift limit safety stops, straddle leg guide rollers for repetitive precision vacuum furnace entry, and bumper stops to position the machine perfectly with every load. With load capacities far exceeding any industry standard, MHE SERVE will help you design the ideal furnace stacker to suit your application. Let us customize your furnace loader
FEATURES:
FEATURES:
1.Lift height can be customized for application
2.Extra rigid forks minimize deflection and potential damage to furnace “Walkie” Walk-3.behind full power design improves efficiency
4.Fork width and length is built to customer specs
5.Heavy duty steel construction
6.Flexible and Fully Customizable Vacuum Furnace Loader Chassis Design
7.Environmentally Friendly Electric
